LT1097_LTC00006: operational amplifier test

part name: LT1097_LTC00006
description: Low cost, Cload stable
documentation: http://cds.linear.com/docs/Datasheet/1097fas.pdf
model name: LT1097
library file: LT1097.MOD

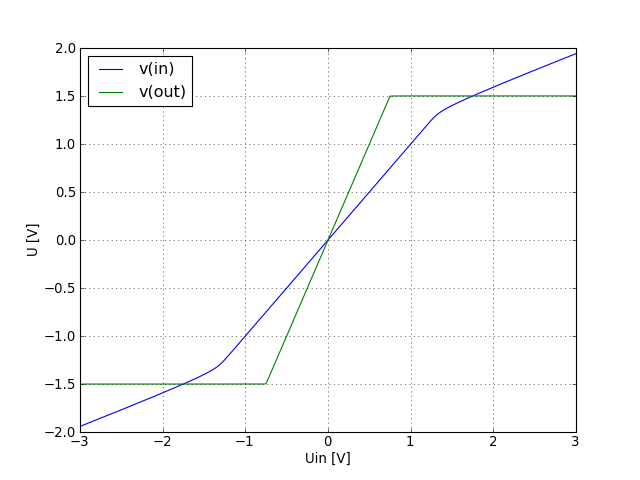

input and output voltage graph
Input and output voltage of an non-inverting amplifier with amplification factor of 2.

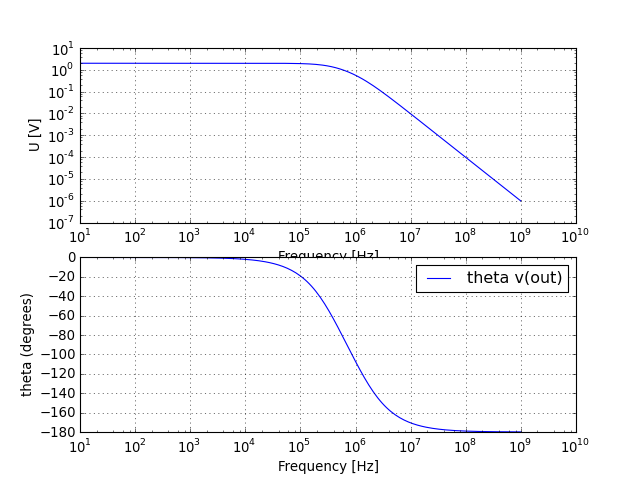

UR voltage graph
Transfer function of an AC non-inverting amplifier.

Test logging messages

testlibrary.pyc creating netlist:  gnetlist -g spice-sdb -l scripts/geda-parts.scm -o model_tests/ltc/opamps/LT1097_LTC00006/ng21/ac_amplifier.net model_tests/ltc/opamps/LT1097_LTC00006/ng21/ac_amplifier.sch
Using SPICE backend by SDB -- Version of 4.28.2007
schematic-type = normal schematic
Command line passed = gnetlist -g spice-sdb -l scripts/geda-parts.scm -o model_tests/ltc/opamps/LT1097_LTC00006/ng21/ac_amplifier.net model_tests/ltc/opamps/LT1097_LTC00006/ng21/ac_amplifier.sch
Loading schematic [/home/werner/oss/geda/spicelib/model_tests/ltc/opamps/LT1097_LTC00006/ng21/ac_amplifier.sch]

testlibrary.pyc netlist creation was successful
testlibrary.pyc running simulation:  cd model_tests/ltc/opamps/LT1097_LTC00006/ng21 ; ngspice -r X -b simulate.ngspice



Circuit: *

Doing analysis at TEMP = 27.000000 and TNOM = 27.000000


No. of Data Rows : 201
Doing analysis at TEMP = 27.000000 and TNOM = 27.000000


No. of Data Rows : 201
Doing analysis at TEMP = 27.000000 and TNOM = 27.000000

elapsed time since last call: 0.027 seconds.

Total elapsed time: 0.027 seconds.

Total DRAM available = 5983.023438 MB.
DRAM currently available = 1846.234375 MB.
Total ngspice program size = 19.793945 MB.
Resident set size = 999.000 kB.
Shared ngspice pages = 715.000 kB.
Text (code) pages = 1.840820 MB.
Stack = 0 bytes.
Library pages = 6.000977 MB.


testlibrary.pyc simulation run was successful
testlibrary.pyc testing and plotting
testlibrary.pyc finished testing and plotting successfully

Werner Hoch
Last modified: Wed Nov 21 15:29:09 CET 2007
