1N4735A_NXP01001: zener diode test

part name: 1N4735A_NXP01001
description: 6.2V zener diode
documentation: http://www.nxp.com/acrobat/datasheets/1N4728A_1.pdf
model name: 1N4735A
library file: 1N4735A.prm

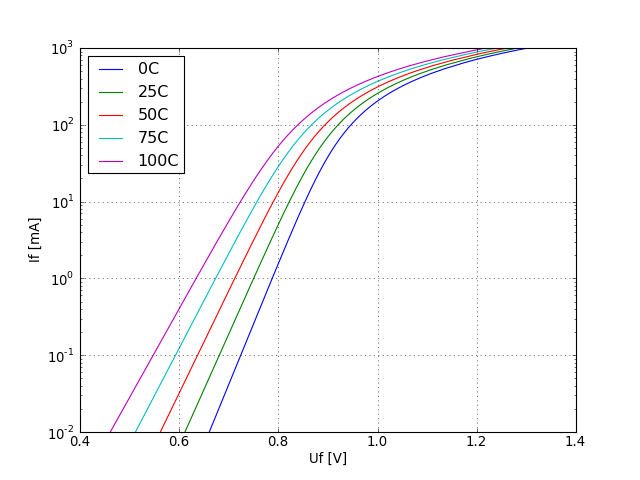

IF voltage graph
forward current as a function of forward voltage at different temperatures.

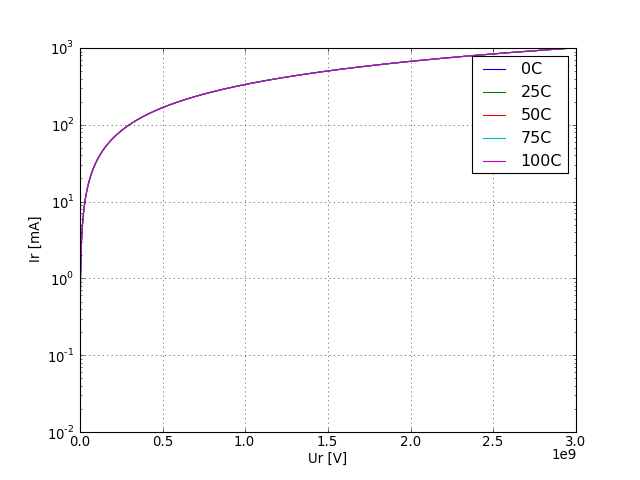

UR voltage graph
Reverse current as a function of reverse voltage at different temperatures.

Test logging messages

testlibrary.pyc creating netlist:  gnetlist -g spice-sdb -l scripts/geda-parts.scm -o model_tests/nxp/diodes/1N4735A_NXP01001/gc0.35/dc_current.net model_tests/nxp/diodes/1N4735A_NXP01001/gc0.35/dc_current.sch
Using SPICE backend by SDB -- Version of 4.28.2007
schematic-type = normal schematic
Command line passed = gnetlist -g spice-sdb -l scripts/geda-parts.scm -o model_tests/nxp/diodes/1N4735A_NXP01001/gc0.35/dc_current.net model_tests/nxp/diodes/1N4735A_NXP01001/gc0.35/dc_current.sch
Loading schematic [/home/werner/oss/geda/spicelib/model_tests/nxp/diodes/1N4735A_NXP01001/gc0.35/dc_current.sch]

testlibrary.pyc netlist creation was successful
testlibrary.pyc running simulation:  cd model_tests/nxp/diodes/1N4735A_NXP01001/gc0.35 ; /usr/bin/gnucap -b simulate.gnucap
Gnucap 0.35
The Gnu Circuit Analysis Package
Never trust any version less than 1.0
Copyright 1982-2006, Albert Davis
Gnucap comes with ABSOLUTELY NO WARRANTY
This is free software, and you are welcome
to redistribute it under certain conditions
according to the GNU General Public License.
See the file "COPYING" for details.
*

testlibrary.pyc simulation run was successful
testlibrary.pyc testing and plotting
reverse voltage out of expected range [0.0, 200.0]
reverse voltage out of expected range [0.0, 200.0]
reverse voltage out of expected range [0.0, 200.0]
reverse voltage out of expected range [0.0, 200.0]
reverse voltage out of expected range [0.0, 200.0]
testlibrary.pyc testing or plotting failed

Werner Hoch
Last modified: Mon Nov 19 19:06:36 CET 2007
