1N4735A_NXP01001: zener diode test

part name: 1N4735A_NXP01001
description: 6.2V zener diode
documentation: http://www.nxp.com/acrobat/datasheets/1N4728A_1.pdf
model name: 1N4735A
library file: 1N4735A.prm

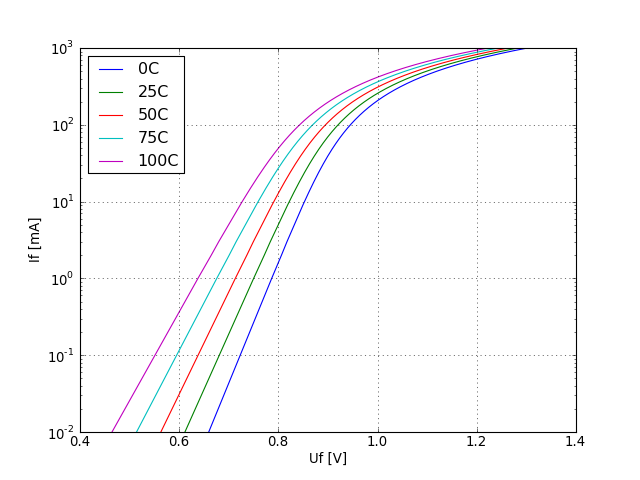

IF voltage graph

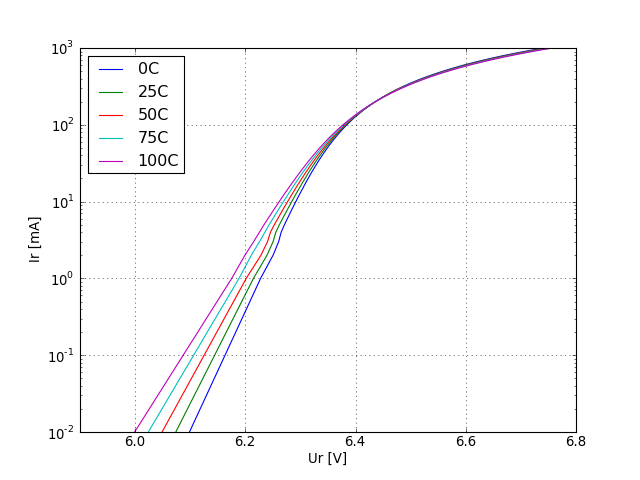

forward current as a function of forward voltage at different temperatures. UR voltage graph
Reverse current as a function of reverse voltage at different temperatures.

Test logging messages

testlibrary.pyc creating netlist:  gnetlist -g spice-sdb -l scripts/geda-parts.scm -o model_tests/nxp/diodes/1N4735A_NXP01001/ng21/dc_current.net model_tests/nxp/diodes/1N4735A_NXP01001/ng21/dc_current.sch
Using SPICE backend by SDB -- Version of 4.28.2007
schematic-type = normal schematic
Command line passed = gnetlist -g spice-sdb -l scripts/geda-parts.scm -o model_tests/nxp/diodes/1N4735A_NXP01001/ng21/dc_current.net model_tests/nxp/diodes/1N4735A_NXP01001/ng21/dc_current.sch
Loading schematic [/home/werner/oss/geda/spicelib/model_tests/nxp/diodes/1N4735A_NXP01001/ng21/dc_current.sch]

testlibrary.pyc netlist creation was successful
testlibrary.pyc running simulation:  cd model_tests/nxp/diodes/1N4735A_NXP01001/ng21 ; ngspice -r X -b simulate.ngspice











Circuit: *

Doing analysis at TEMP = 0.000000 and TNOM = 27.000000


No. of Data Rows : 1000
Doing analysis at TEMP = 25.000000 and TNOM = 27.000000


No. of Data Rows : 1000
Doing analysis at TEMP = 50.000000 and TNOM = 27.000000


No. of Data Rows : 1000
Doing analysis at TEMP = 75.000000 and TNOM = 27.000000


No. of Data Rows : 1000
Doing analysis at TEMP = 100.000000 and TNOM = 27.000000


No. of Data Rows : 1000
Doing analysis at TEMP = 0.000000 and TNOM = 27.000000


No. of Data Rows : 1000
Doing analysis at TEMP = 25.000000 and TNOM = 27.000000


No. of Data Rows : 1000
Doing analysis at TEMP = 50.000000 and TNOM = 27.000000


No. of Data Rows : 1000
Doing analysis at TEMP = 75.000000 and TNOM = 27.000000


No. of Data Rows : 1000
Doing analysis at TEMP = 100.000000 and TNOM = 27.000000


No. of Data Rows : 1000
Doing analysis at TEMP = 100.000000 and TNOM = 27.000000

elapsed time since last call: 0.217 seconds.

Total elapsed time: 0.217 seconds.

Total DRAM available = 5983.023438 MB.
DRAM currently available = 3359.375000 MB.
Total ngspice program size = 19.859375 MB.
Resident set size = 1020.000 kB.
Shared ngspice pages = 684.000 kB.
Text (code) pages = 1.840820 MB.
Stack = 0 bytes.
Library pages = 6.066406 MB.


testlibrary.pyc simulation run was successful
testlibrary.pyc testing and plotting
testlibrary.pyc finished testing and plotting successfully

Werner Hoch

Last modified: Mon Nov 19 19:06:36 CET 2007
