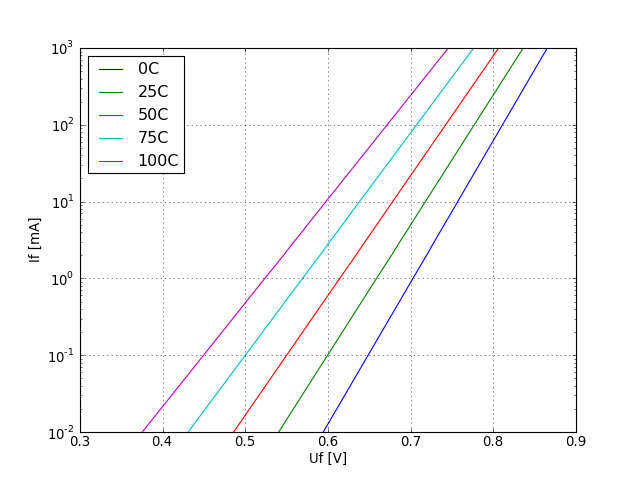

forward current as a function of forward voltage at different temperatures.
forward current as a function of forward voltage at different temperatures. |
testlibrary.pyc creating netlist: gnetlist -g spice-sdb -l scripts/geda-parts.scm -o model_tests/nxp/diodes/BAS16H_NXP01006/ng21/dc_current.net model_tests/nxp/diodes/BAS16H_NXP01006/ng21/dc_current.sch Using SPICE backend by SDB -- Version of 4.28.2007 schematic-type = normal schematic Command line passed = gnetlist -g spice-sdb -l scripts/geda-parts.scm -o model_tests/nxp/diodes/BAS16H_NXP01006/ng21/dc_current.net model_tests/nxp/diodes/BAS16H_NXP01006/ng21/dc_current.sch Loading schematic [/home/werner/oss/geda/spicelib/model_tests/nxp/diodes/BAS16H_NXP01006/ng21/dc_current.sch] testlibrary.pyc netlist creation was successful testlibrary.pyc running simulation: cd model_tests/nxp/diodes/BAS16H_NXP01006/ng21 ; ngspice -r X -b simulate.ngspice Circuit: * Error on line 10 : d1 in 0 bas16h Unable to find definition of model bas16h - default assumed Doing analysis at TEMP = 0.000000 and TNOM = 27.000000 No. of Data Rows : 1000 Doing analysis at TEMP = 25.000000 and TNOM = 27.000000 No. of Data Rows : 1000 Doing analysis at TEMP = 50.000000 and TNOM = 27.000000 No. of Data Rows : 1000 Doing analysis at TEMP = 75.000000 and TNOM = 27.000000 No. of Data Rows : 1000 Doing analysis at TEMP = 100.000000 and TNOM = 27.000000 No. of Data Rows : 1000 Doing analysis at TEMP = 100.000000 and TNOM = 27.000000 elapsed time since last call: 0.123 seconds. Total elapsed time: 0.123 seconds. Total DRAM available = 5983.023438 MB. DRAM currently available = 2492.339844 MB. Total ngspice program size = 19.826172 MB. Resident set size = 960.000 kB. Shared ngspice pages = 672.000 kB. Text (code) pages = 1.840820 MB. Stack = 0 bytes. Library pages = 6.033203 MB. testlibrary.pyc simulation run was successful testlibrary.pyc testing and plotting testlibrary.pyc finished testing and plotting successfully
