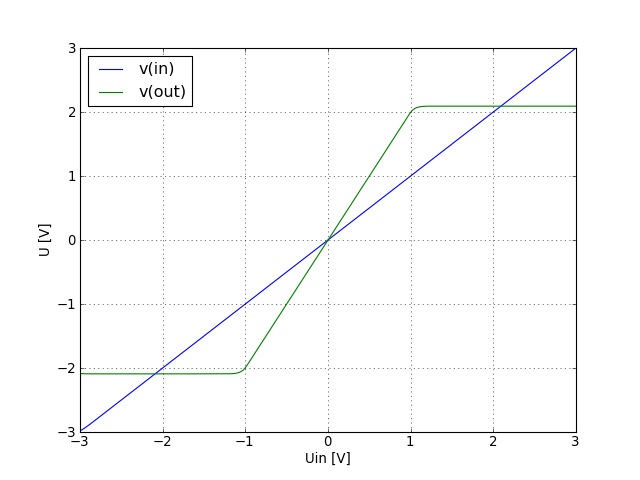

Input and output voltage of an non-inverting amplifier with amplification factor of 2.

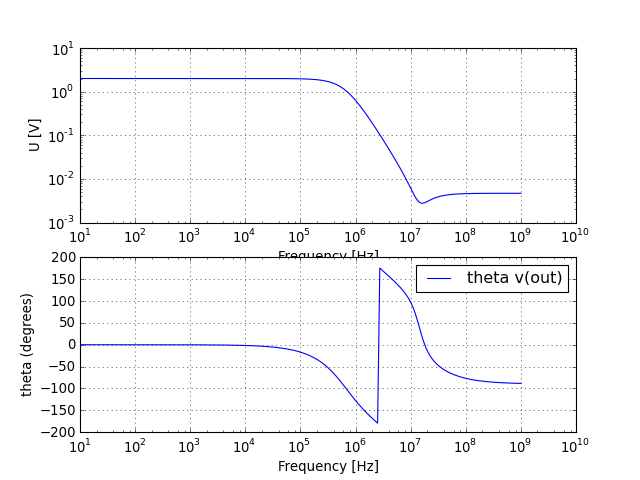

Transfer function of an AC non-inverting amplifier.
Input and output voltage of an non-inverting amplifier with amplification factor of 2. |
Transfer function of an AC non-inverting amplifier. |
testlibrary.pyc creating netlist: gnetlist -g spice-sdb -l scripts/geda-parts.scm -o model_tests/ti/opamps/OPA1013E_TI00002/ng21/ac_amplifier.net model_tests/ti/opamps/OPA1013E_TI00002/ng21/ac_amplifier.sch Using SPICE backend by SDB -- Version of 4.28.2007 schematic-type = normal schematic Command line passed = gnetlist -g spice-sdb -l scripts/geda-parts.scm -o model_tests/ti/opamps/OPA1013E_TI00002/ng21/ac_amplifier.net model_tests/ti/opamps/OPA1013E_TI00002/ng21/ac_amplifier.sch Loading schematic [/home/werner/oss/geda/spicelib/model_tests/ti/opamps/OPA1013E_TI00002/ng21/ac_amplifier.sch] testlibrary.pyc netlist creation was successful testlibrary.pyc running simulation: cd model_tests/ti/opamps/OPA1013E_TI00002/ng21 ; ngspice -r X -b simulate.ngspice Circuit: * Doing analysis at TEMP = 27.000000 and TNOM = 27.000000 No. of Data Rows : 201 Doing analysis at TEMP = 27.000000 and TNOM = 27.000000 No. of Data Rows : 201 Doing analysis at TEMP = 27.000000 and TNOM = 27.000000 elapsed time since last call: 0.042 seconds. Total elapsed time: 0.042 seconds. Total DRAM available = 5983.023438 MB. DRAM currently available = 1772.031250 MB. Total ngspice program size = 19.825195 MB. Resident set size = 1.020508 MB. Shared ngspice pages = 725.000 kB. Text (code) pages = 1.840820 MB. Stack = 0 bytes. Library pages = 6.032227 MB. testlibrary.pyc simulation run was successful testlibrary.pyc testing and plotting testlibrary.pyc finished testing and plotting successfully
