diode test

test schematic setup

test schematic
There is only one test simulations for a switching diode:
  1. the forward voltage
The simulation simulation is done at different temperatures and plotted in a semilogy plot.

postprocessing tests

The expected range for the forward voltage should be between 0 and 3.0 volts. This will catch pinswap errors in the part definitions.

example test results

IF voltage graph

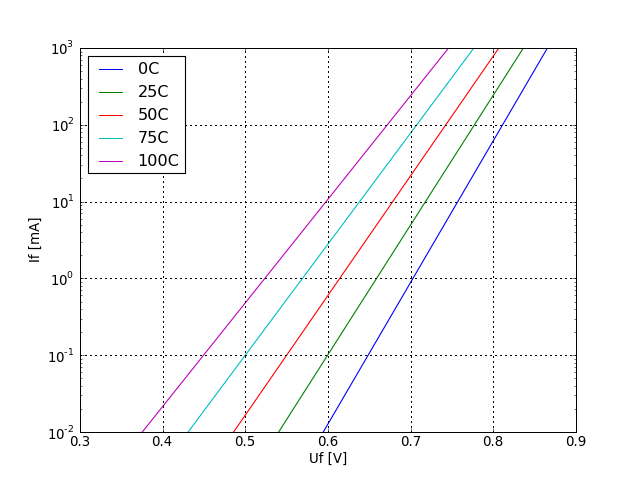

forward current as a function of forward voltage at different temperatures.
