NPN transistor with base resistor test

This type of transistor is similar to a npn digital transistor, but the resistor between base and emitter is missing.

test schematic setups

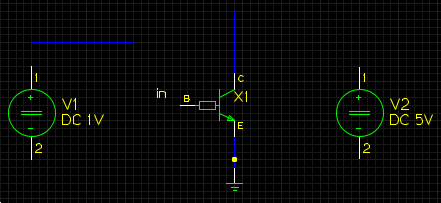

test schematic
 Test for the amplifier characteristics of the transistor.
  1. Input current over input voltage
  2. output current over input voltage.
This simulation is done at different temperatures and plotted in two linear plots.

postprocessing tests

This test has currently no postprocessing test. Use your eyes to catch any error.

example test results

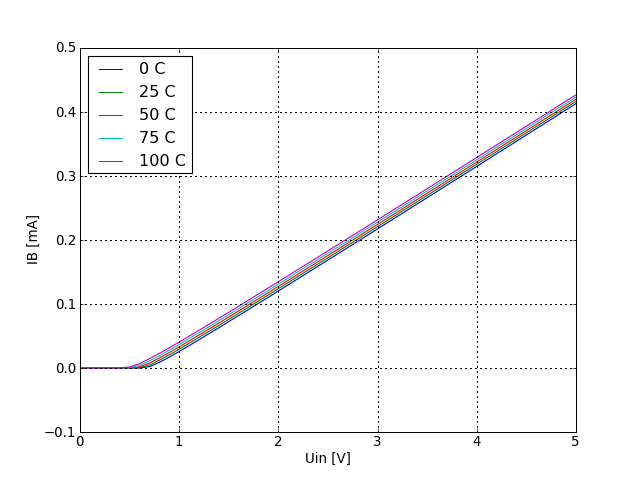

Input current graph
Parameters: V_CE = 5V
Input current as a function of input voltage at different temperatures.		 V_CE voltage graph
Parameters: V_CE = 5V

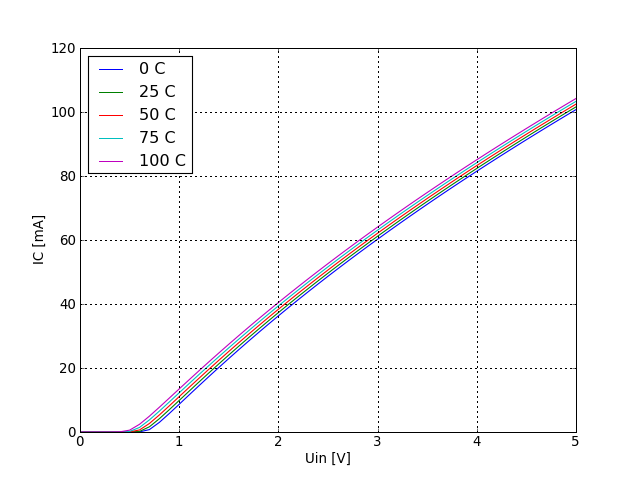

Collector current as a function of input voltage at different temperatures.
Werner Hoch
Last modified: Wed Sep 23 12:37:16 CEST 2009
